Diamond&Cbn Grinding Wheel;

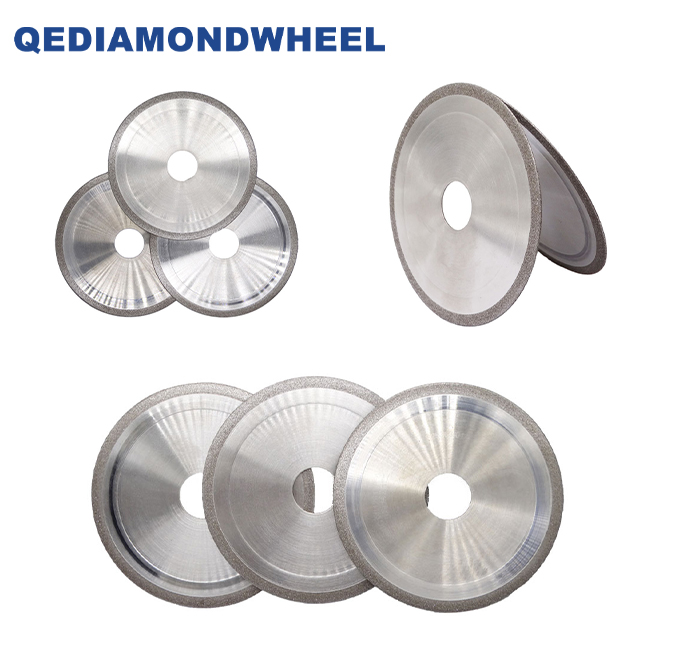

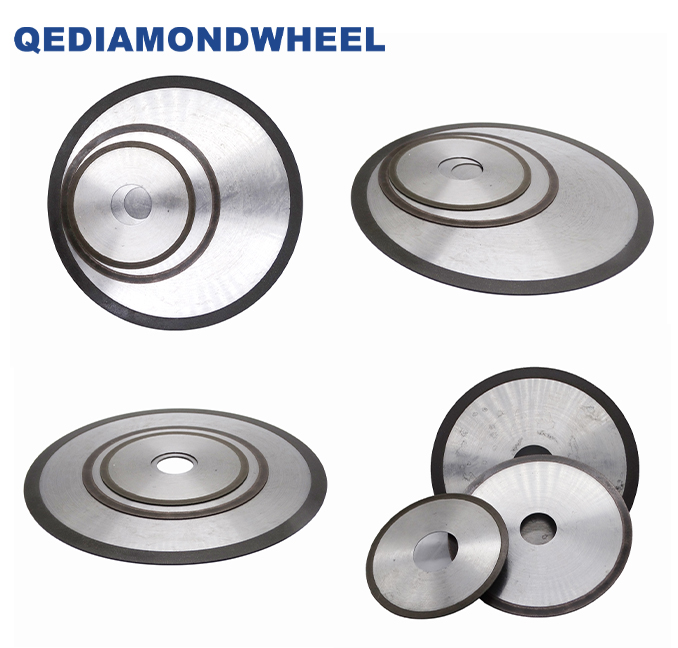

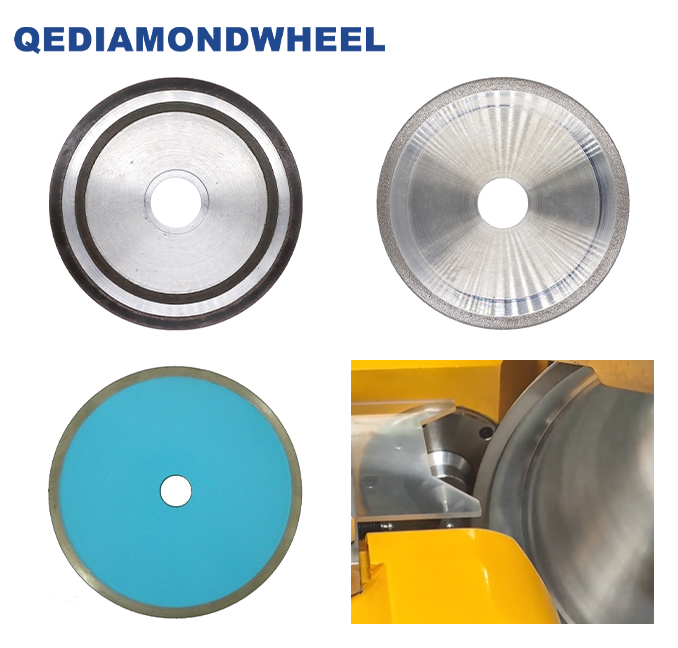

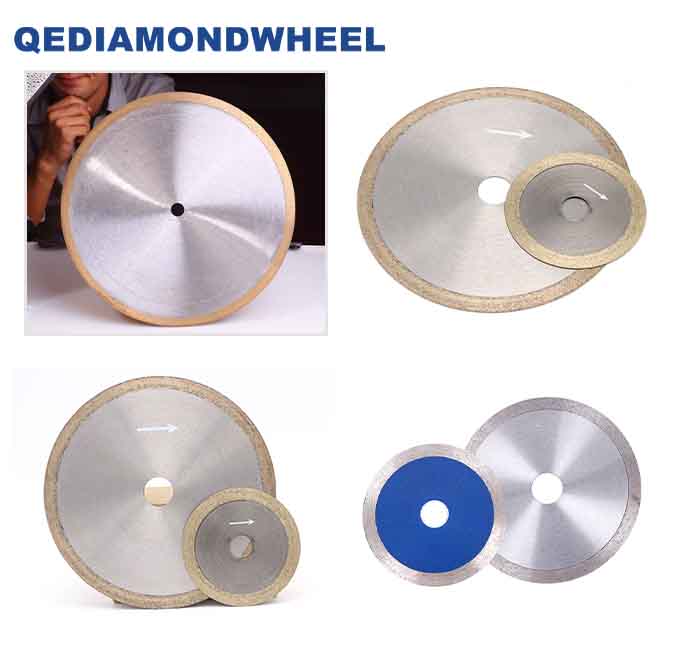

1A1R Diamond Grinding Wheel Is An Ultra-Thin Cutting Grinding Wheel With A Single-Sided Concave Bevel Structure. Its Main Feature Is That The Thickness Of The Abrasive Working Layer Is Greater Than The Thickness Of The Substrate, Which Is Convenient For Chip Removal And Cooling. It Is Specially Used For Precision Cutting And Grooving Of Hard And Brittle Materials, And For Grooving And Cutting Off Parts With Larger Cutting Depths.
At Present, According To The Binder And Material, It Is Mainly Divided Into The Following Materials:

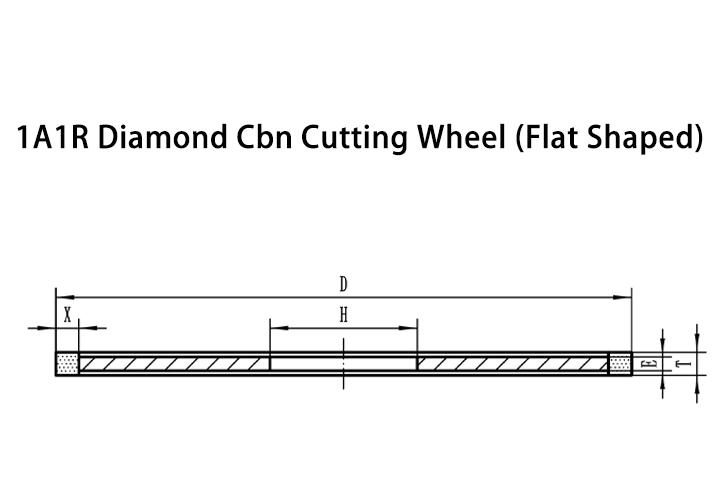

| 1A1R Resin Bond Diamond&Cbn Cut Off Disc Size | |||
| Product Diameter | Product Hole | Product Thickness | Abrasive Width |
| 75mm | 20mm | 1.5mm | 6mm |
| 80mm | 10mm | 1mm | 10mm |
| 100mm | 20mm | 1mm | 10mm |
| 100mm | 31.75mm | 1mm | 6mm |
| 125mm | 32mm | 0.6mm | 6mm |
| 150mm | 25.4mm | 1.5mm | 6mm |
| 154mm | 32mm | 1mm | 10mm |
| 220mm | 32mm | 3mm | 8mm |
| 300mm | 31.75mm | 1.8mm | 10mm |
| We can provide you with customized grinding wheel services. If you need other sizes and grits, please send a message to:admin@qediamonds.com | |||
