Diamond Grinding Wheel Is A Super-Hard Grinding Tool Made Of Diamond As Abrasive And Metal, Resin, Ceramic And Other Binders. It Is Specially Used For Precision Machining Of High-Hardness And Brittle Materials;
1.Working Layer: Contains Diamond Abrasives, Responsible For Grinding Tasks, Its Particle Size (Coarse Particle Size W1.5~100# For Rough Grinding, Fine Particle Size W1.5~20# For Fine Grinding) And Concentration (Abrasive Ratio) Directly Affect Efficiency And Life.
2.Transition Layer: Connects The Working Layer And The Substrate To Enhance The Bonding Strength.
3.Substrate: Metal Binders Are Mostly Made Of Steel, And Resin Binders Are Often Made Of Aluminum Alloys, Supporting The Overall Structure And Adapting To Machine Tools.
Our Grinding Wheel Factory Provides Professional Diamond Grinding Wheel Customization Services to Ensure Your Grinding!
1.High Hardness (Mohs Hardness 10): Can Process Hard Alloy, Ceramic, Optical Glass And Other Difficult-To-Cut Materials.
2.Strong Wear Resistance: Life Is 30-200 Times That Of Ordinary Grinding Wheels, Reducing The Frequency Of Replacement.
3.Good Thermal Conductivity: Rapid Heat Dissipation To Avoid Burns Or Cracks On The Workpiece.
4.Self-Sharpening: The Binder Allows The Abrasive Particles To Fall Off Moderately And Maintain Sharpness.
1.Machinery manufacturing:Grinding Of Carbide Tools, Precision Machining Of Bearings, Ensuring Dimensional Accuracy (Roundness <1μM).
2.Electronic Industry:Cutting And Polishing Of Silicon Wafers, Requiring No Microcracks On The Surface; Edge Trimming Of Ceramic Substrates.
3.Building Stone:Efficient Cutting And Mirror Polishing Of Granite And Marble, Reducing Material Edge Collapse.
4.Semiconductor Manufacturing:Wafer Thinning (Combined Process Of Rough Grinding + Fine Grinding), CMP Polishing Pad Trimming.
| Gridning Wheel Bond | Feature | Appliation |

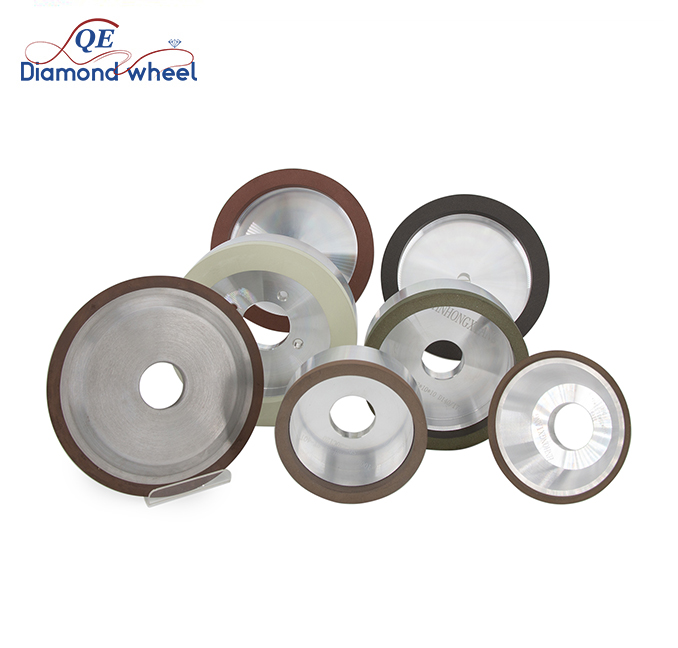

| Resin Bond Diamond Grinding Wheel | The Binder Is Soft, Good In Elasticity, And Has A Polishing Effect; It Has Good Self-Sharpening Properties And Is Not Easy To Clog; It Has A Fast Grinding Speed, High Efficiency, And Is Widely Used. | Carbide Tools And Steel-Bonded Carbide Workpieces And Parts Non-Metallic Materials |

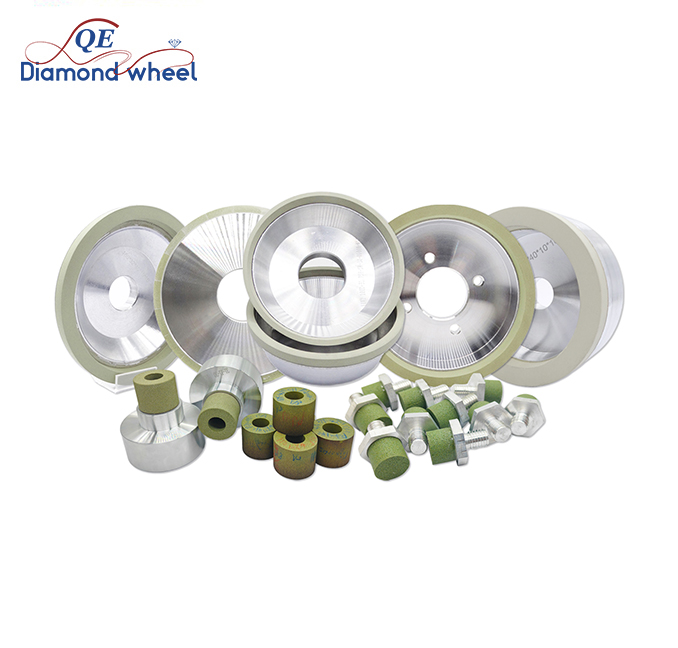

| Vitrified Bond Diamond Grinding Wheel | Porosity; Self-Sharpening; Easy To Dress; Good Cooling Conduction; Wear Resistance, High Grinding Ratio; |
PCD/PCBN Blade |

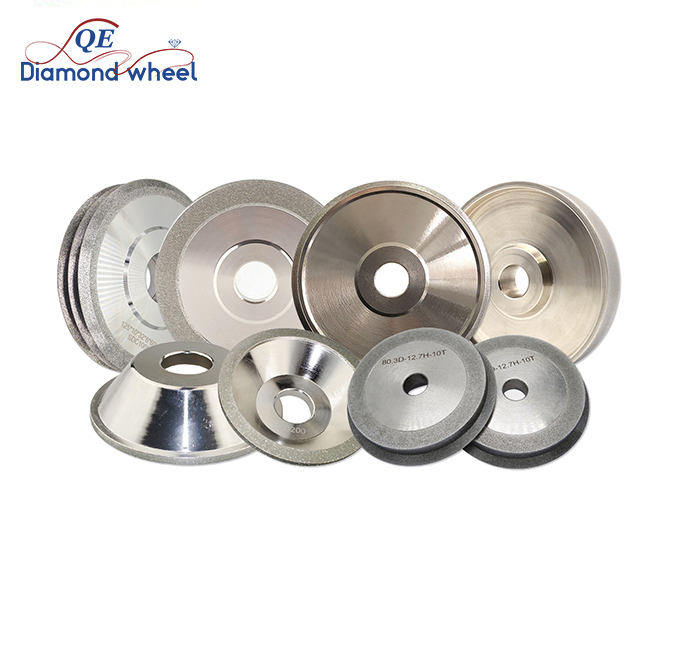

| Electroplated Bond Diamond Grinding Wheel | A Single Layer Of Abrasive Is Fixed To The Substrate By Electroplating Deposition. Customized Shaped |
Metal, Gemstone, Glass, Carbide, Etc. |
| Metal Bond Diamond Grinding Wheel | Metals Are More Wear-Resistant And Last Longer Than Resins; They Are Often Dull And Generate Excessive Grinding Heat. | Used For Processing Alloy Materials And Other Difficult-To-Process Materials, Such As Glass, Quartz, Ceramics, Etc. |
|

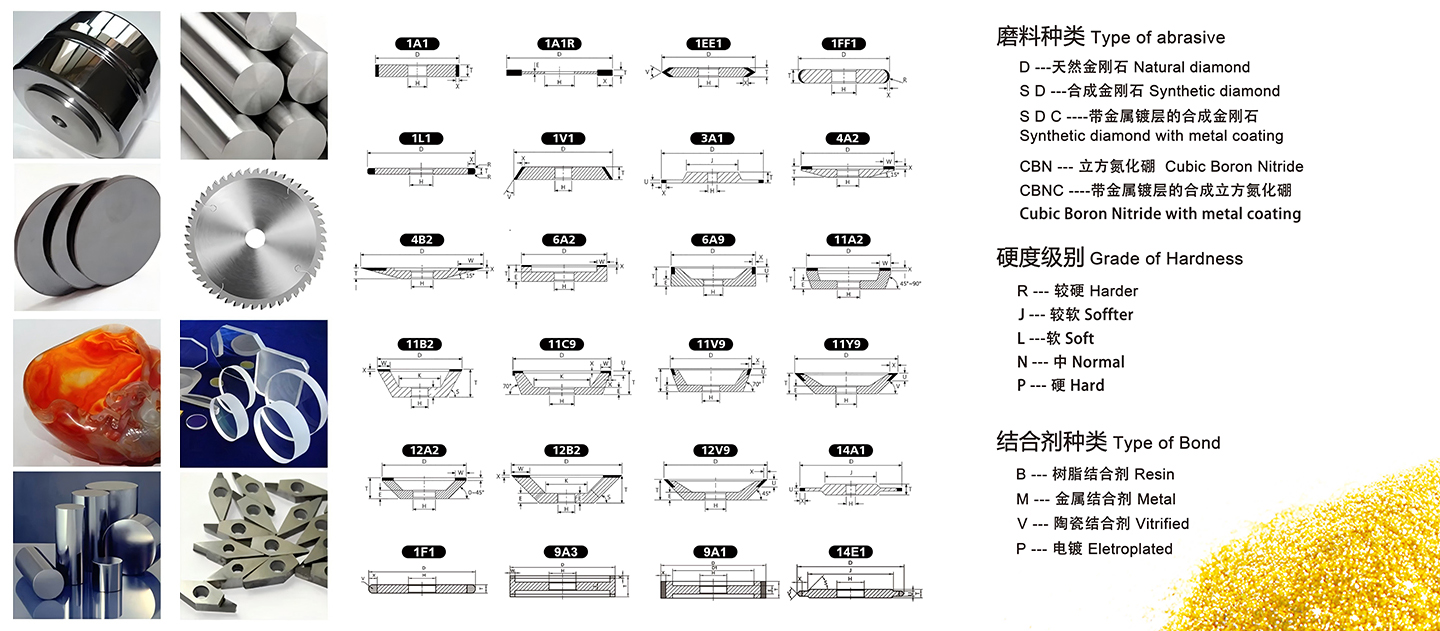

Diameter (D) |
Hole (H) |
Thickness (T) |
Abraive Width (W) |
Abraive Hight (X) |
Grit |
Concentration (C) |
|
50mm-800mm/Customized |
12.7mm-32mm/Customized |
1mm-40mm/Customized |
1mm-20mm/Customized |
1mm-20mm/Customized |
Customized |
Customized |
