High Quality Electroplated Grinding Wheel Lapidary;
Electroplated Diamond Grinding Wheels Are Made Of High-Quality Diamond Material, Evenly Covered On The Base, And Nickel-Plated To Ensure That The Grinding Wheel Has High Sharpness, Which Is Very Effective For Cutting Gemstones. The Grinding Wheel Is Made Of High-Strength Plastic, Which Is Lighter Than The Metal-Based Electroplated Grinding Wheel, And Has Less Pressure On The Bearings, Thereby Protecting The Machine.
There Are Three Main Types Of Electroplated Plastic Matrix Diamond Grinding Wheels:
The Three Grinding Wheels Have Different Advantages And Disadvantages. Please Choose The Grinding Wheel That Suits You And Place An Order.

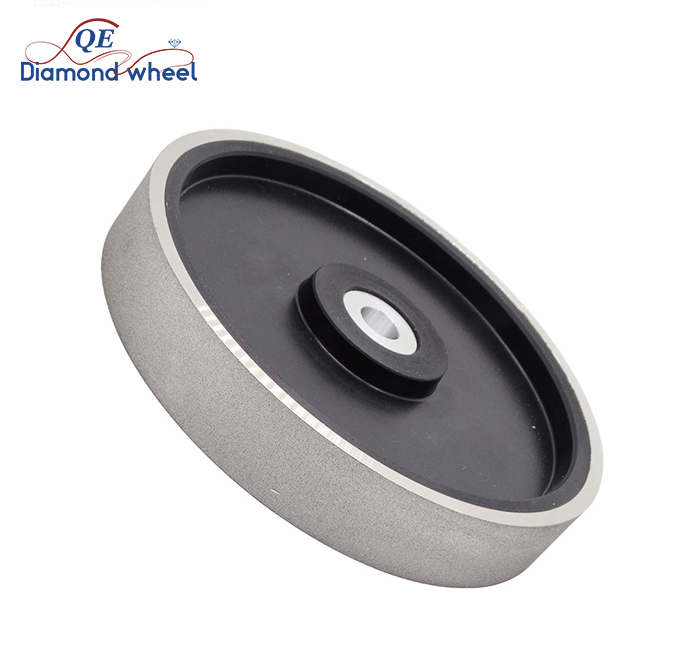

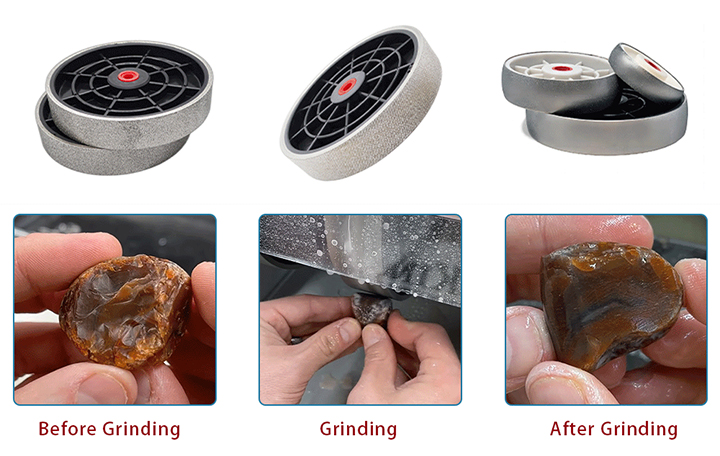

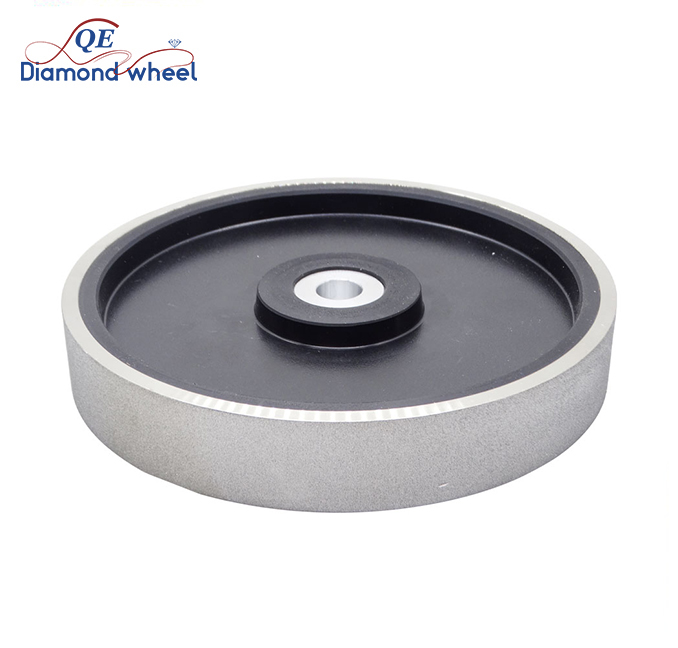

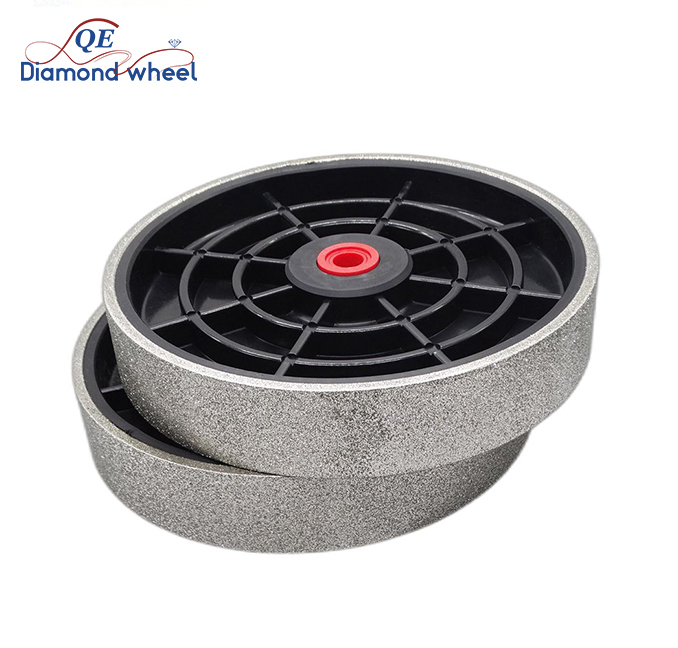

Diamond Coated Lapidary Polishing Wheel For Rough Grinding And Pre-Forming Of Stone And Glass Materials. They Have A Longer Grinding Life And Faster Cutting Speed.

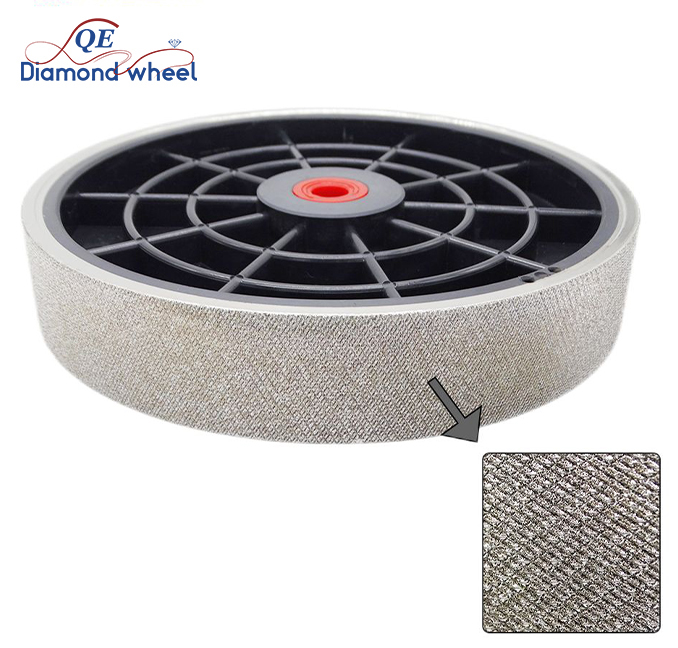

Electroplated Diamond Textured Grinding Wheels For Rough Grinding And Preforming Of Stone And Glass Materials. These Wheels Are Electroplated And Feature A Cross-Grid Pattern That Prevents Chipping, Keeps The Wheel Cool, And Aids In Chip Removal For Faster Grinding.
Electroplated Diamond Radius wheels Suitable For Engraving Glass And Stone. They Are Also Very Suitable For Grinding Glass. Their Rounded Convex Design Makes The Grinding Of The Contact Point Clearly Visible. These Wheels Are Ideal For Making Grooves, Mosaics And Soft Curves Often Required In Colored Glass.
| Product Name | Diameter | Hole | Thickness | Grit |
| Electroplated Diamond Cabbing Wheel | 100mm (4inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 25mm | 60 Mesh 80 Mesh 220 Mesh 360 Mesh 600 Mesh 800 Mesh 1200 Mesh 1500 Mesh 2000 Mesh 3000 Mesh |
| 100mm (4inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 32mm | ||
| 100mm (4inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 38mm | ||
| 150mm(6inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 25mm | ||
| 150mm(6inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 32mm | ||
| 150mm(6inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 38mm | ||
| 150mm(6inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 50mm | ||
| 200mm(8inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 25mm | ||
| 200mm(8inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 38mm | ||
| 200mm(8inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 50mm | ||
| We can provide you with customized grinding wheel services. If you need other sizes and grits, please send a message to: admin@qediamonds.com | ||||
