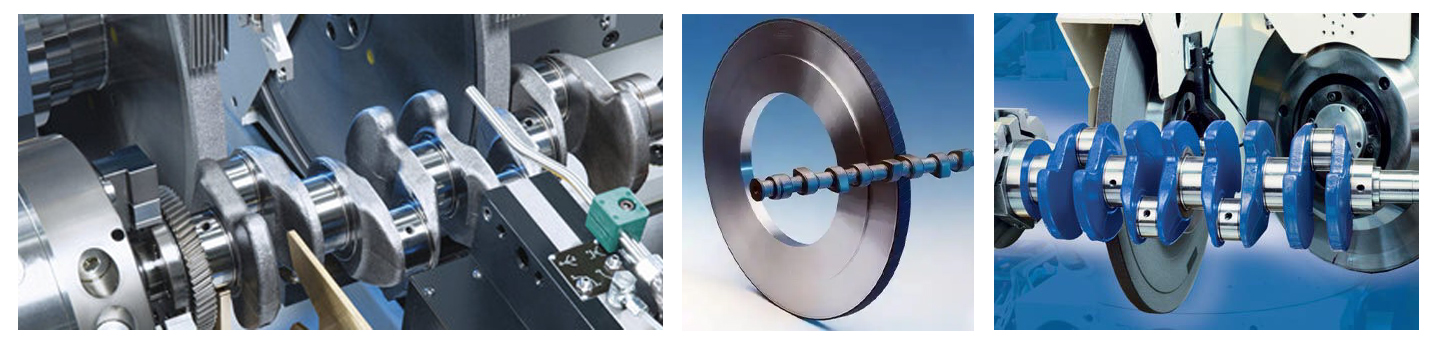

The Machining Accuracy Of Core Engine Components, Such As Crankshafts And Camshafts, Has A Profound Impact On Overall Engine Performance. Every Step In The Manufacturing Process, From Grinding To Polishing, Is Crucial And Collectively Determines The Final Quality Of The Component.
In Crankshaft Machining, The Selection Of Grinding Wheel Parameters Is Crucial. It Is Generally Recommended To Use A Vitrified CBN Grinding Wheel With Excellent Wear Resistance And High Efficiency.
Vitrified CBN Grinding Wheels Are Effective In Preventing Grinding Burn On Crankshaft Shoulders. CBN Crankshaft Grinding Wheels Can Be Used With Various High-Precision CNC Crankshaft Grinders And Are Suitable For Efficient, Heavy-Duty Grinding Of Crankshaft Pins And Journals. Wheel Speeds Typically Range From 80M/S To 120M/S.
Key Features Of Vitrified Bond CBN Grinding Wheels:
High Grinding Efficiency, High Workpiece Precision, Excellent Surface Quality, And Easy Dressing.
Applications:
High-Speed, High-Efficiency Grinding Of Camshaft Lobes In Automotive Engines;
High-Speed, High-Efficiency Grinding Of Crankshaft Connecting Rod Journals, Main Journals, Flange Journals, Thrust Faces, And End Faces In Automotive Engines
Grinding Materials: Cast Iron: Chilled Cast Iron, Ductile Iron, Gray Cast Iron, Alloy Cast Iron, Etc.
Steel: 20Cr, GCr15, CF53, 45# Steel, 55# Steel, 80B High Carbon Steel, Etc.

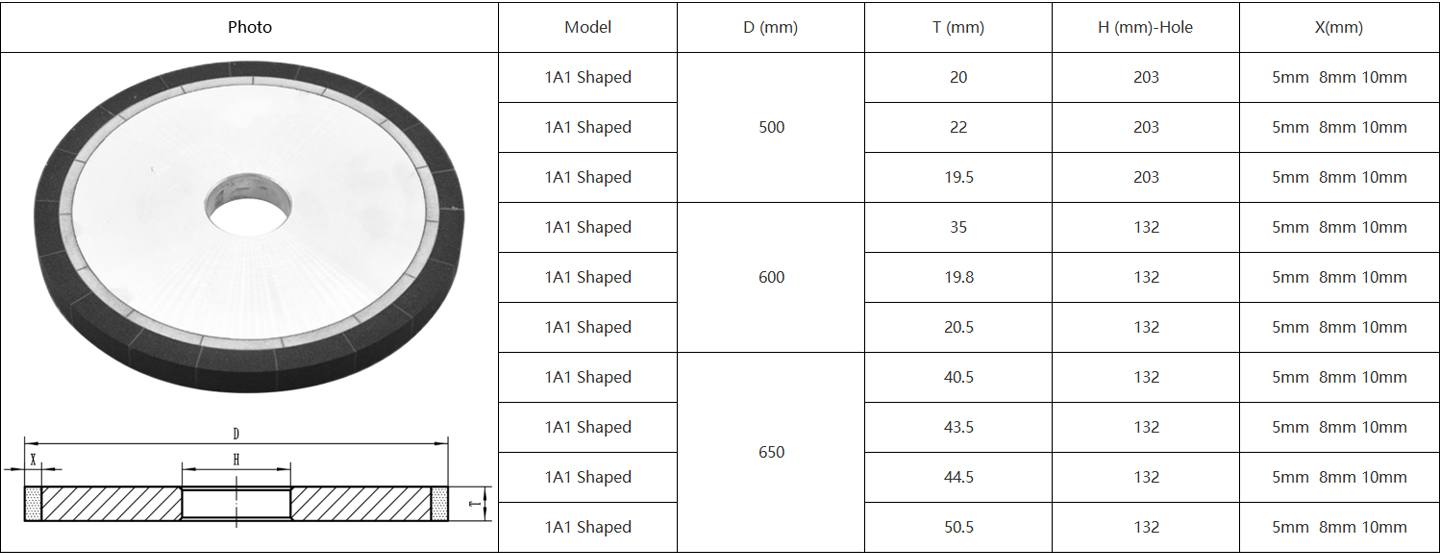

1A1 Shaped Vitrified Bond Diamond Grinding Wheel For Crankshaft Grinding

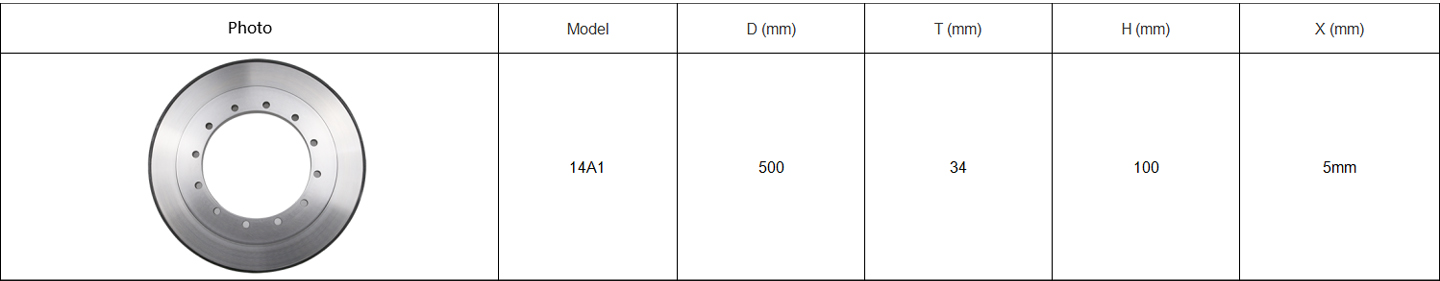

14A1 Shaped Vitrified Bond Diamond Grinding Wheel For Crankshaft Grinding
In The Machining Of Crankshafts And Camshafts, The Close Integration And Coordinated Evolution Of Grinding And Polishing Are Particularly Important. Selecting The Right Process And Tools Is A Key Factor In Ensuring Component Performance And Improving Engine Reliability.
