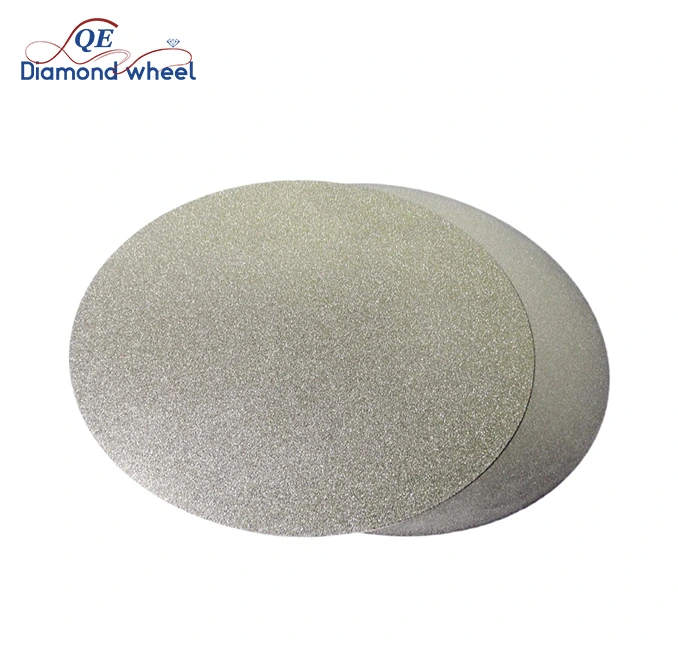

Electroplated Diamond Lap Faceting Disc
Electroplated Diamond Lap Faceting Disc
Electroplated Diamond Lap Faceting Disc

Electroplated Diamond Lap Faceting Disc

High Quality Electroplated Diamond Lap Faceting Disc;

product name:Electroplated Diamond Lap Faceting Disc;
material:synthetic diamond powder + metal Body;
size:150mm(6inch)/200mm(8inch)/250mm(10inch)/300mm(12inch);
application:gemstone Faceting machine,angle machine;
usage:Diamond grinding discs are widely used in electronics, glass products, electron tubes, crystals, handicrafts, gemstones, agate, jade, ceramics, crystal lighting, precision machining and other industries.;
  • Electroplated Diamond Lap Faceting Disc
  • Electroplated Diamond Lap Faceting Disc
  • Electroplated Diamond Lap Faceting Disc
  • Electroplated Diamond Lap Faceting Disc
WhatsApp Send Email
Introduction Features Size Model Package Message Products

Product Introduction

Electroplated Diamond Grinding Discs Are Made Of Artificial Diamond Powder And Metal Matrix. The Artificial Diamond Powder Is Plated On The Surface Of The Technical Matrix Through Electroplating Technology To Process Other Products. Electroplated Diamond Flat Discs Are Widely Used And Can Be Used To Grind Jade, Agate, Amber, Ceramics, Glass, Knives, Etc.

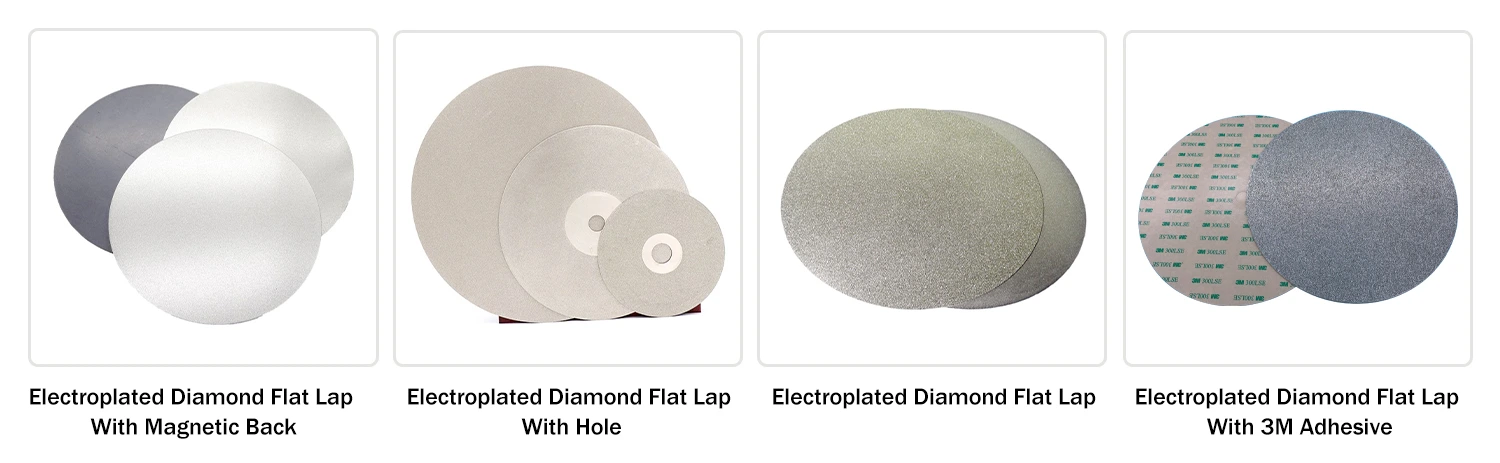

Electroplated Diamond Lapping Disc:

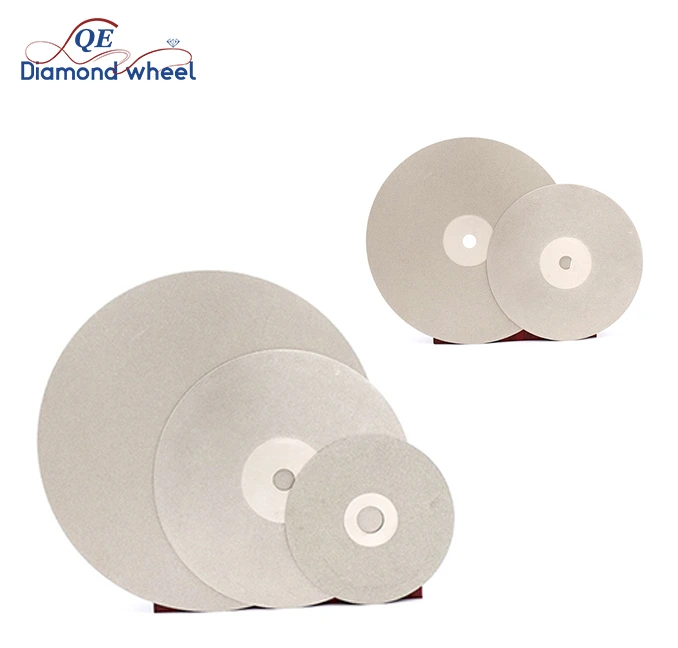

Electroplated Diamond Lapping Disc With Hole.
Electroplated Diamond Lapping Disc NO Hole.

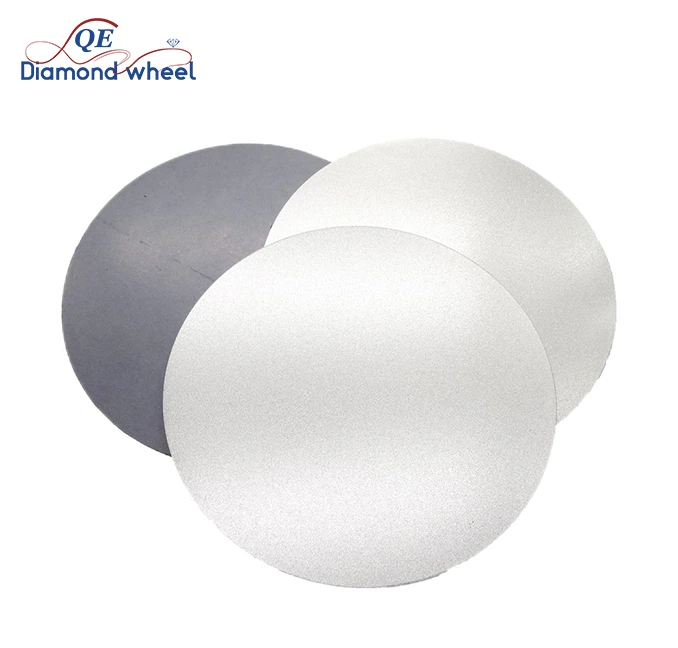

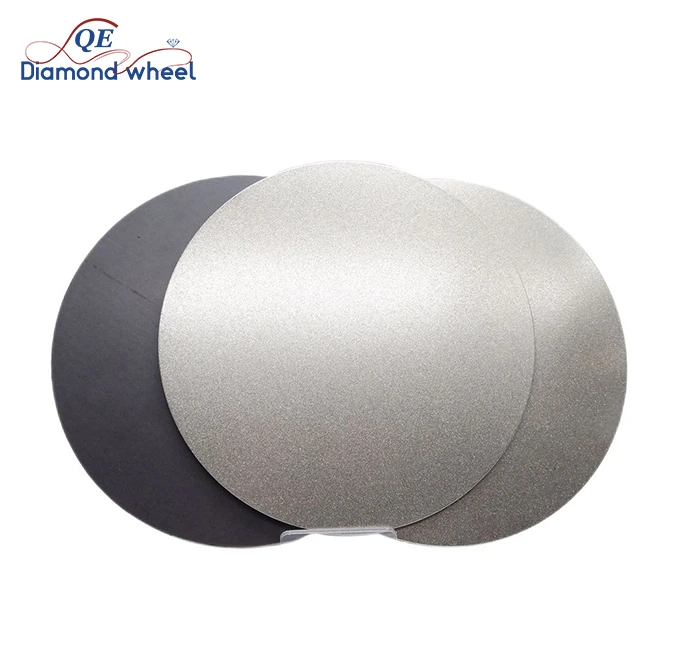

Electroplated Diamond Lapping Disc On Magnetic Back.
Electroplated Diamond Lapping Disc On 3M Adhesive.
Thickened Electroplated Diamond Lapping Disc.

Product Features

1.Use Pure High-Quality Diamond Sand, Without Other Impurities, High Hardness, High Compressive Strength, Good Wear Resistance.



2.Using Special Electroplated Technology, The Diamond Working Layer Is Tightly Adhered To The Substrate, Without Sand Falling Off Or Delamination.



3.The base is made of 45# steel in one piece. The grinding disc has good surface flatness, is hard and wear-resistant, is not afraid of stamping, and is not easy to deform.



4.Can Be Used Wet Or Dry, Diamond Particles Are Uniform, The Pattern Is Clear, The Grinding Precision Is High, And The Service Life Is Longer.



Product size

Product Name Diameter（inch） Diameter（mm） Hole Base thickness MOQ Grit
Electroplated Diamond
Flat Lap Discs With Hole		 4 inch 100mm 12.7mm/25.4mm 1mm 10 pc 60 Mesh
80 Mesh
100 Mesh
120 Mesh
150-240 Mesh
260 Mesh
360 Mesh
400-1200 Mesh
1500-3000 Mesh
6 inch 150mm 12.7mm/25.4mm 1mm 10 pc
8 inch 200mm 12.7mm/25.4mm 1mm 10 pc
10 inch 250mm 12.7mm/25.4mm 1mm 10 pc
12 inch 300mm 12.7mm/25.4mm 1mm 10 pc

No Hole Electroplated Diamond
Flat Lap Discs

(Magnetic Back Flat Lap Discs)
(3M adhesive Flat Lap Discs)

 4 inch 100mm / 1mm 10 pc
6 inch 150mm / 1mm 10 pc
8 inch 200mm / 1mm 10 pc
10 inch 250mm / 1mm 10 pc
12 inch 300mm / 1mm 10 pc
Thickened electroplated
Diamond Flat Lap Discs		 6 inch 150mm / 6.3mm 15 pc
8 inch 200mm / 6.3mm 15 pc
6 inch 150mm / 8mm 15 pc
8 inch 200mm / 8mm 15 pc
We Can Provide You With Customized Grinding Wheel Services. If You Need Other Sizes And Grits, Please Send A Message To: admin@qediamonds.com
