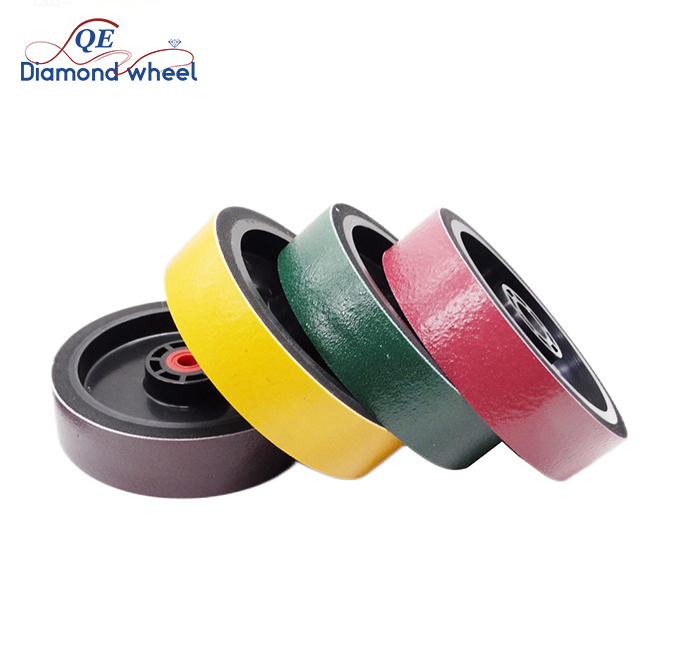

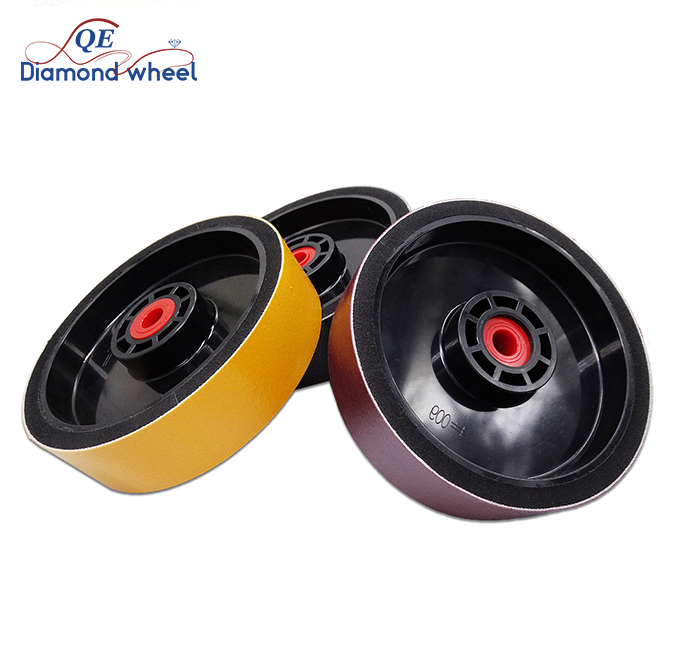

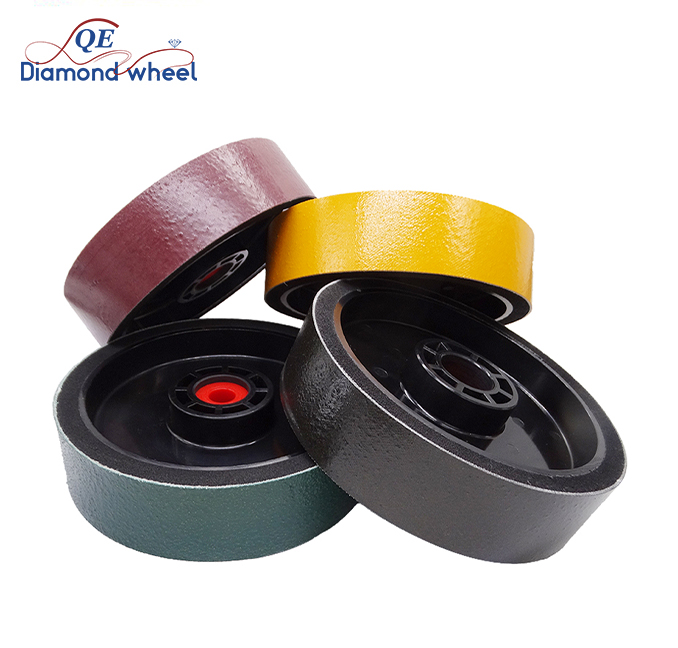

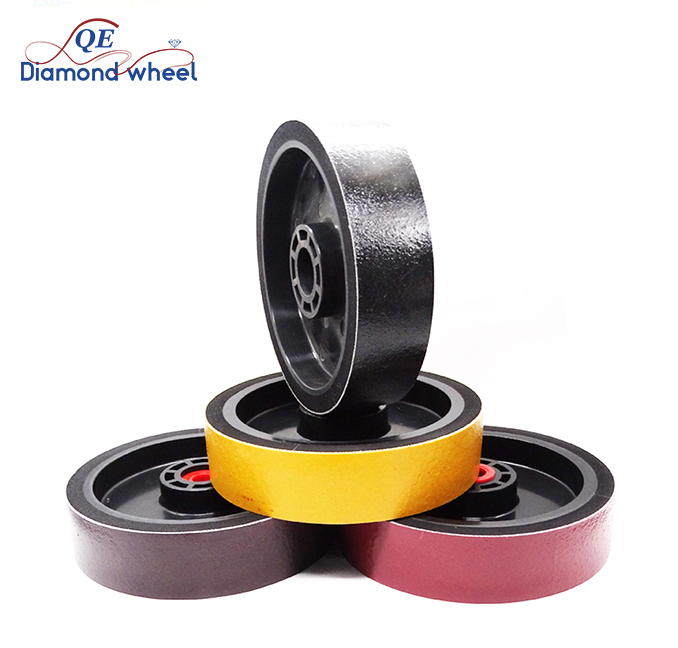

Resin Soft Diamond Grinding Wheel Can Be Used In Various Gem Grinding Machines, Such As Cabking Machine And Other Grinding Machines;
Diamond Resin Cabbing Wheels Can Be Used For Trimming, Smoothing, Profile Grinding And Pre-Polishing Of Stone, Glass, Composite Materials And Even Some Metals. These Resin Diamond Cabbing Wheels Are Available In 6" And 8" Diameters And In A Variety Of Different Grit Sizes;
Soft Diamond Resine Wheels Is Made Of Plastic Matrix + Artificial Diamond Powder + Resin Material, With A Light Overall Weight And An Abrasive Layer Thickness Of 0.3mm. Grinding Wheels With A 0.45mm Abrasive Layer Thickness Can Also Be Customized, But The Minimum Order Quantity Is 5 Pieces For Each Grit Size Grinding Wheel.
Diamond flexible grinding wheel uses resin as adhesive and combines selected diamond powder to make it extremely flexible and excellent cutting ability. It is mainly used for special-shaped processing of hard and brittle materials such as gemstones, crystals, glass, artificial crystals, ceramics, etc.
Through grinding and polishing from coarse-grained to fine-grained grinding wheels, the surface of the gemstone can achieve excellent smoothness and brightness. At the same time, with special grinding and polishing equipment, it is easy to use, simple and safe to operate.
| Product Name | Diameter | Hole | Thickness | Grit |
| 6 inch Resin Diamond Polishing Wheel |
150mm(6inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 38mm | 60 Mesh |
| 150mm(6inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 38mm | 140 Mesh | |
| 150mm(6inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 38mm | 280 Mesh | |
| 150mm(6inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 38mm | 600 Mesh | |
| 150mm(6inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 38mm | 1200 Mesh | |
| 150mm(6inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 38mm | 3000 Mesh | |
| 150mm(6inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 38mm | 8000 Mesh | |
| 150mm(6inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 38mm | 14000 Mesh | |
| 150mm(6inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 38mm | 50000 Mesh | |
| 8 inch Resin Diamond Polishing Wheel |
200mm(8inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 50mm | 60 Mesh |
| 200mm(8inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 50mm | 140 Mesh | |
| 200mm(8inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 50mm | 280 Mesh | |
| 200mm(8inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 50mm | 600 Mesh | |
| 200mm(8inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 50mm | 1200 Mesh | |
| 200mm(8inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 50mm | 3000 Mesh | |
| 200mm(8inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 50mm | 8000 Mesh | |
| 200mm(8inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 50mm | 14000 Mesh | |
| 200mm(8inch) | 25.4mm(Gasket:12.7mm/16mm/19mm) | 50mm | 50000 Mesh | |
| We can provide you with customized grinding wheel services. If you need other sizes and grits, please send a message to: admin@qediamonds.com | ||||
