High Quality Vitrified Bond Diamond Grinding Wheel For PCD PCBN Tools;
Professional Ceramic Bond Diamond Solutions for Precision Grinding
Vitrified diamond grinding wheels combine the extreme hardness of synthetic diamond abrasives with advanced ceramic bonding technology. The ceramic bond provides excellent rigidity and thermal stability, making it ideal for precision grinding of super-hard materials.
Our high-purity ceramic bond offers superior wear resistance and consistent performance. The porous structure allows efficient coolant penetration and chip clearance, preventing loading and ensuring cool cutting action throughout the wheel's lifespan.
Compared to resin-bonded wheels, vitrified diamond wheels provide higher grinding efficiency, better form retention, and superior surface finish. They are particularly suitable for grinding cemented carbides, ceramics, glass, and composite materials.
Superior material removal rates with minimal wheel wear
Maintains precise wheel form for consistent part geometry
Produces exceptional surface quality up to Ra 0.05μm
Open structure allows effective coolant penetration
Extended wheel life reduces production costs
Suitable for wet and dry grinding of ultra-hard materials
Our vitrified diamond wheels are specifically engineered for high-precision, high-efficiency grinding of ultra-hard non-ferrous materials and super-hard alloys. With superior thermal stability and exceptional dimensional accuracy, combined with the rigid grinding action of ceramic bonding, they are ideal for the following four major application categories:

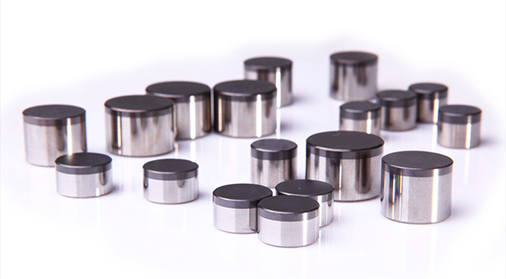

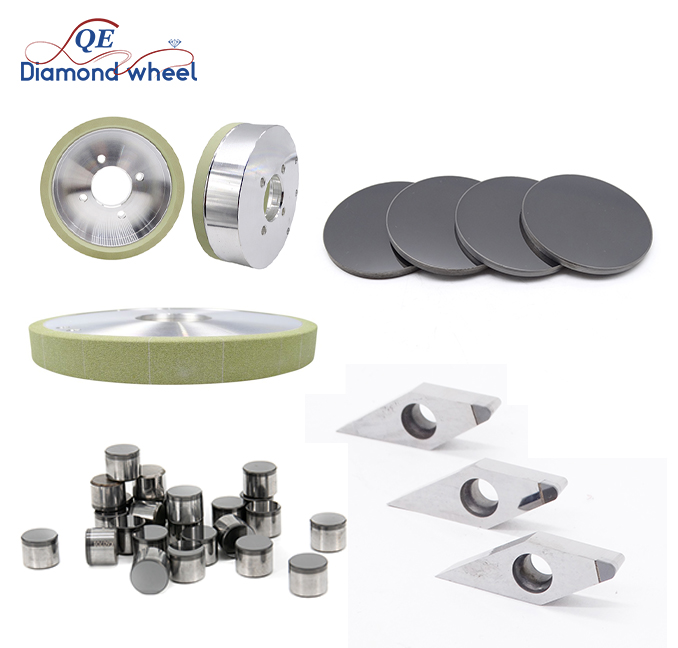

Precision grinding of PCD/PCBN cutting tools using vitrified diamond wheels
Our vitrified diamond wheels are optimized for high-precision grinding machines used in super-hard material processing:
| Parameter | Specifications |
|---|---|

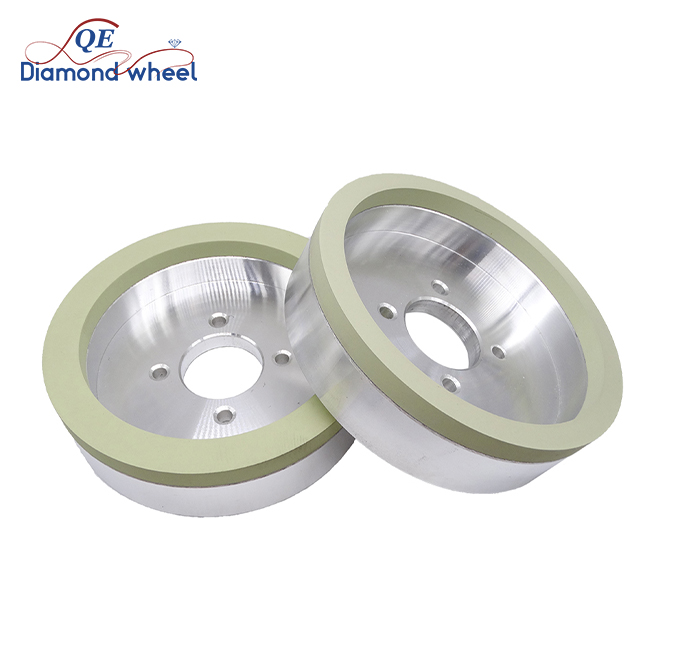

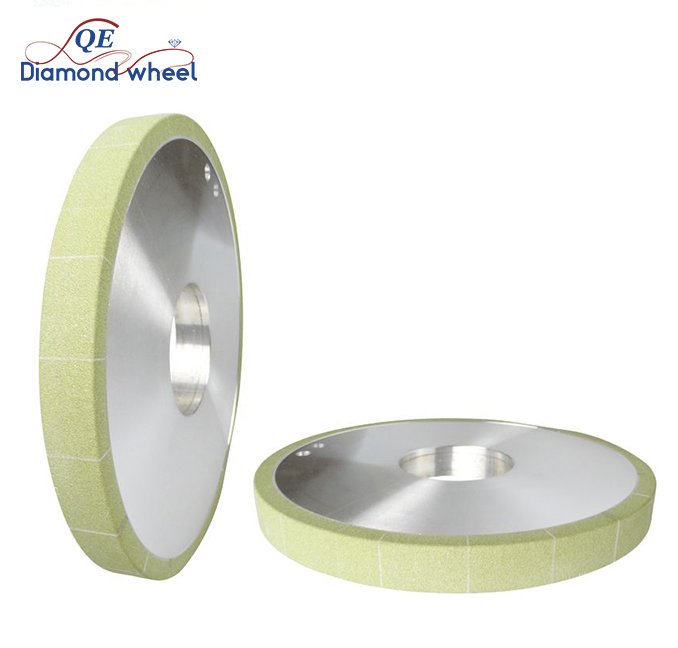

| Model/Type | VD-Series (1A1/6A2/Customized) |
| Diameter (mm) | 50 - 500 (Custom up to 600) |
| Bore Size (mm) | 10 - 305 (Custom available) |
| Thickness (mm) | 3 - 100 (Custom available) |
| Grit Size | 100# - 3000# (Fine to ultra-fine) |
| Diamond Concentration | 25% - 200% (Standard: 75%/100%) |
| Max Speed (m/s) | 30 m/s (Special up to 60 m/s) |
| Machine Type | Surface, Cylindrical, Tool Grinders |
| Dry/Wet Grinding | Both suitable (Wet recommended) |
| Bond Type | Vitrified ceramic bond |
| Hardness Grade | Soft (J/K) to Hard (P/Q) |
| Grain Type | Synthetic Diamond (Various grades) |
Note: All specifications can be customized based on your machine model, workpiece material, and grinding requirements. Contact our technical team for special applications.
Block A, 5th Research Institution
Zhengzhou, Henan
China 450000
Send us your grinding requirements for a free technical consultation.

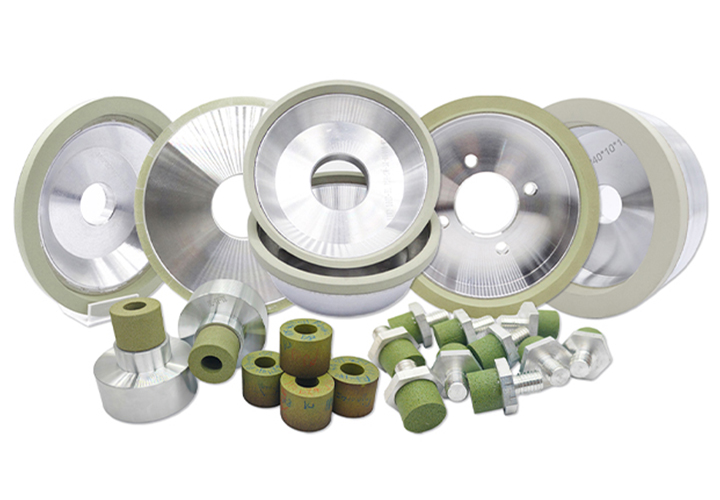

Complete Diamond Grinding Wheel Types: This comprehensive diagram shows the various shapes and configurations of vitrified diamond grinding wheels available for different grinding applications and machine requirements.

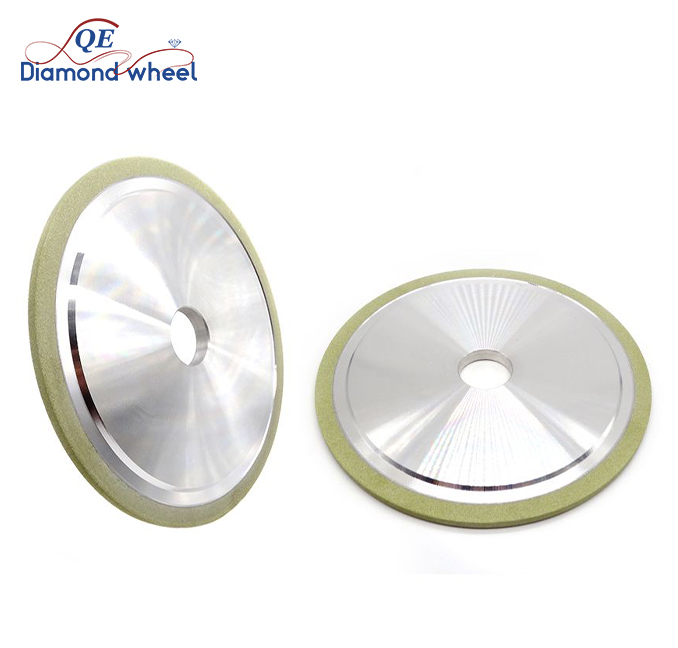

Choosing the right diamond wheel shape is critical for optimal grinding performance. For ceramic bond diamond wheels, the most common shapes are parallel, dish, and cup wheels. Our technical team can help you select the most suitable wheel configuration based on your machine specifications, workpiece material, and grinding requirements.
Our diamond grinding experts are ready to help you optimize your grinding process and achieve superior results with our vitrified diamond wheels.
